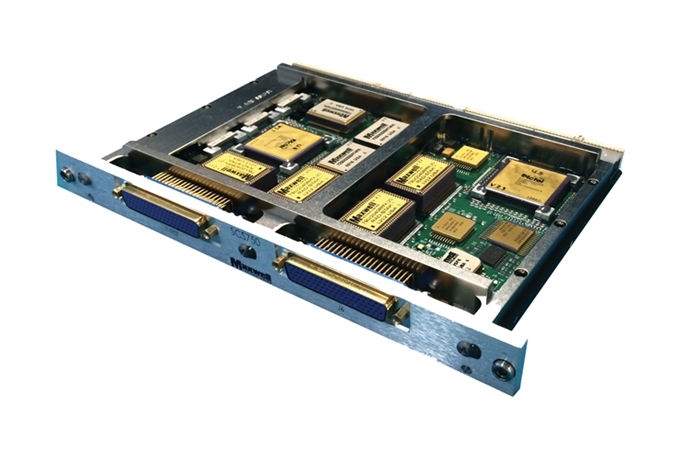

The SCS750® Single Board Computer is DDC's answer to the space industry's need for both mid- and high-performance computing, and on-board data processing requiring the upmost data management and manipulation on the spacecraft, which requires a large amount of processing power. The SCS750® SBC enables satellite designs to dramatically increase error-free, on-board data processing, mission planning, and critical decision-making.

The SCS750® SBC has been designed to operate in a cPCI system targeting high performance computing for the most demanding space applications. Its design decisions have been driven by a guarantee of the highest reliability and performance. DDC has developed a comprehensive strategy to provide total dose, latch-up, and upset hardness for the SCS750® SBC.

FEATURES

• Proven in space TRL-9
• Best Single Event Performance
• Seamless Error Correction
• Wide Range of Processing Power
• Highest Design Margin
• Wide range of operating capability:
  • 200 1800 MIPS
  • 7 30 watts typical
• Speed and power settings can be managed via software in real time; no reboot required.
• Outstanding SBC radiation hardness
  • TID greater than 100 krad (Si)
  • SEU hard
  • SEL immune
• Standard development platform  VxWorks®
