Features

• Small 312 Ball BGA Package:
  • Transformer-Coupled Component (0.6" x 1.1") (15.2 mm x 27.9 mm)
  • Direct & Transformer-Coupled Component (0.7" x 1.1")(17.8 mm x 27.9 mm)
  • 0.185" (4.7 mm) Max Height
• 1 Dual Redundant MIL-STD-1553 Channel
  • BC, RT, MT or RT/MT Functionality
  • Direct and/or Transformer Coupled
  • Supports MIL-STD-1553 A/B & MIL-STD-1760
  • 4K x 16 or 64K x 16 RAM
  • Tx Inhibit Ball for MT Only Applications
  • BC Disable Ball for RT Only Applications
  • External RT Address Inputs
  • MIL-STD-1760 RT Auto Boot
  • Simple System RT Mode
• Autonomous Built-In Self-Test
• 3.3 Volt Only Operation
• DO-254 Certifiable
• Leaded and RoHS Versions Available
• High-Level C Software Development Kits with Sample Code for Windows®, Linux®, and VxWorks®
• Graphical Interface to Generate Application C Code
• -55°C to +125°C

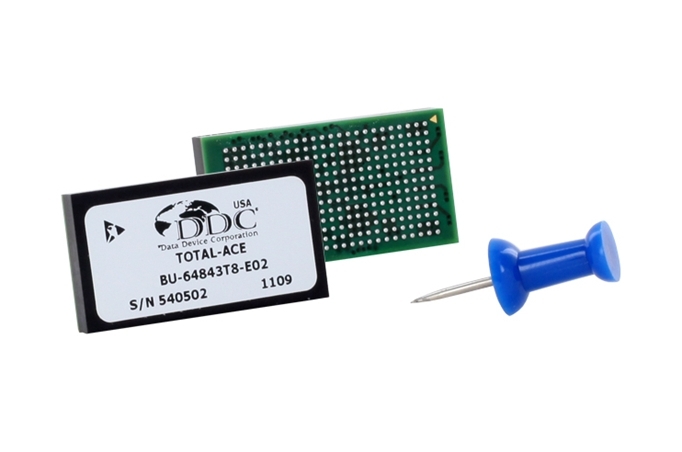

Save board space and simplify your 1553 design and layout with the world's first fully integrated MIL-STD-1553 component, complete with 1553 protocol, memory, transceivers, and isolation transformers all in one small plastic BGA package with direct and/or transformer coupled 1553 connections inside.

Benefits

• Small Size Saves Board Space
• Simplified Board Design with Single Package System
• Single Part Provides Increased Reliability
• Field Proven & Reliable Technology with over 62 Million Hours of In-Service History
• Qualified and RT Validated to Simplify Qualification
• Lower Total Cost of Ownership
• Software Compatible with ACE, Mini-ACE®, Enhanced Mini-ACE®, Micro-ACE®, and Mini-ACE® Mark3 Series

Applications

• Mission Computers
• Digital Data Recorders
• LRU's
• Displays
• Radios Modems
• Radar Systems Situational Awareness
• Ground Vehicles
• Commercial Aerospace
