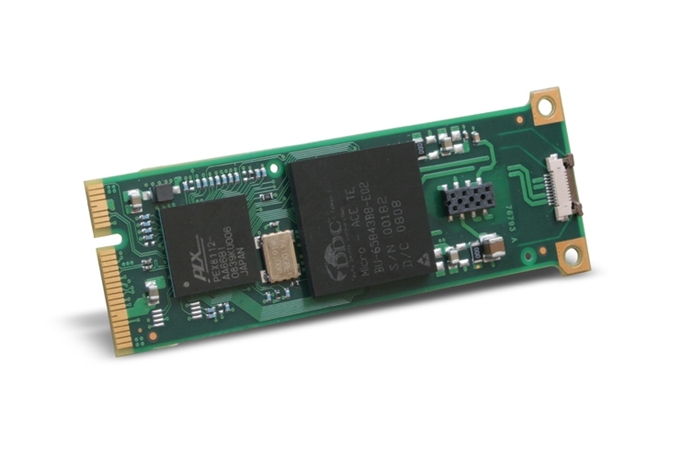

This small form factor Mini-PCIe board allows one dual redundant MIL-STD-1553 channel to be easily added to any small embedded system, laptop, or tablet computer, to provide a cost effective, light weight, small size, rugged, and reliable 1553 bus interface. The board can meet rugged levels of shock and vibration along with a maximum temperature range of -40°C to +85°C.

BENEFITS

• Complete Hardware and Software Solution
• Enables 1553 to be Added to Any System with a Slot
• Suitable for Both Embedded and Portable Applications
• Field Proven Reliable Technology Based on 62 Million Hours of In-Flight Performance
• Save Time and Reduce Cost
  • Common Test/Embedded API for Rapid Prototyping with Less Programming Time
  • Program in Minutes with BusTrACEr Automated Application C Code Generation

APPLICATIONS

• Rugged Small Embedded Systems
• Laptops or Tablets
• Bus Troubleshooting
• Diagnostic Systems
• Hand Held Test Equipment
• Small Displays

FEATURES

• Small Form Factor Mini-PCIe Board
  • Air Cooled Board
  • 1 inch x 3 inches (25 x 76 mm)
  • x1 Lane PCIe Host Interface
• One Dual Redundant MIL-STD-1553 Channel
  • BC, RT, MT, or RT/MT Operation
  • Supports MIL-STD-1553A/B and MIL-STD-1760
  • Transformer Coupled
• High-Level C Software Development Kits for Windows®, Linux®, and VxWorks®
• Graphical Avionics Bus Analysis & Simulation Software Available
