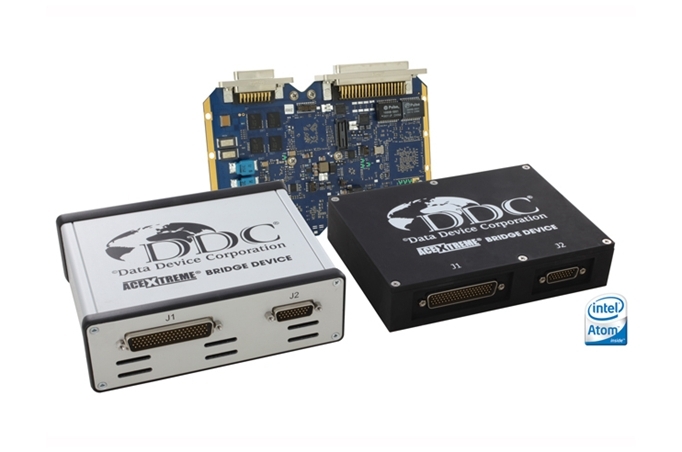

DDCs AceXtreme Bridge Device converts avionics messages in real time between Ethernet, MIL-STD-1553, and ARINC-429, in any direction, without a host computer.

BENEFITS

• SWaP-C Optimized... Saves Installation Time and Cost
• No Host Computer Required
• Onboard Processor Enables Application Programming Flexibility
• Accomodates Large Data Buffering
• Compatible with 28V Aircraft and Ground Vehicle Power
• Simplifies Data Bus Cabling
• Turnkey Bridging Software

APPLICATIONS

• Upgrade & Retrofit
• Protocol Conversion
• Mission Computers
• Displays
• Test & Systems Integration
• Situational Awareness
• Simulators
• Data Loading
• Data Monitoring

FEATURES

• Bridge Between Ethernet, MIL-STD-1553, and/or ARINC 429
• Remote Access to 429 or 1553 Data via Ethernet
• Low Power 1GHz Intel Atom Processor
• 8 GB Solid-State Drive
• IP67 Rugged D Connectors
• 28V Power (MIL-STD-704 & MIL-STD-1275)
• MIL-STD-810 Shock, Vibration, Humidity, and Altitude Testing
• MIL-STD-461 EMC
• Expansion Site Inside: Contact DDC for Other I/O
• Bridging Software API
