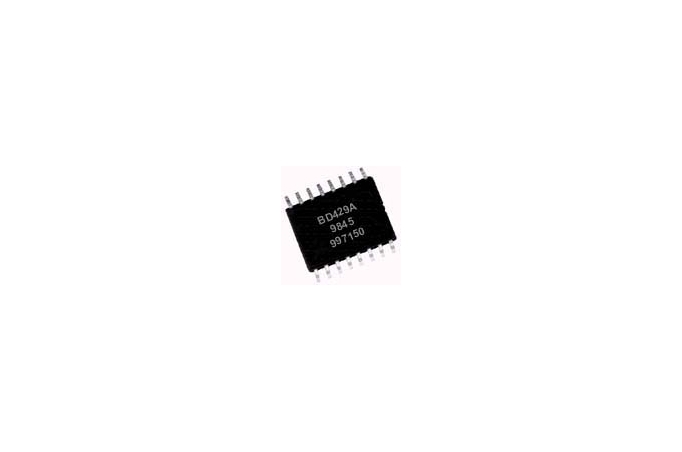

ARINC 429 Line Driver for HI speed (100 kHz) and LOW speed (12.5 kHz) data rates
· Pin for Pin replacement part for industry standard ARINC 429 Line Drivers
· Available in a 16 Pin SOIC (WB), 16 Pin CERDIP, 16 Lead Ceramic SOP,
· 28L CLCC and 28L PLCC
· Low EMI RS-422 line driver mode for data rates up to 100 kHz
· Adjustable slew rates via two external capacitors
· Inputs are TTL and CMOS compatible
· Low quiescent power of 125mW (typical)
· Programmable output differential range via VREF pin
· Outputs are fused for failsafe overvoltage protection
· Drives full ARINC load of 400W and 30,000pF
· Extended (-55°C/+85°C) and Military (-55°C/+125°C) temperature ranges
· 100% Final Testing

· ARINC 429 Line Driver for high speed (100 KHz) and
low speed (12.5 KHz) data rates.
· Adjustable Slew rates via external capacitors.
· Small foot print (14L SOIC NB)
· Programmable output differential range via VREF pin.
· Drives full ARINC load of 400 Ω and 30 nF.
· -55 ºC to +85 ºC operating temperature range.
· 100% Final testing.

ARINC 429 Line Driver for high speed (100KHz) and low speed (12.5KHz) data rates.
• Low EMI RS-422 Line Driver mode for data rates up to 100 KHz.
• Adjustable Slew rates via external capacitors.
• Inputs TTL and CMOS Compatible.
• Low Quiescent Power of 125mW (typical)
• Programmable output differential range via VREF pin.
• Outputs have no internal source resistor and fuse.
• Drives full ARINC load of 400Ω and 0.03µF.
• -55°C to +85°C operating temperature range.
• 100% Final testing

•ARINC 429 Line Driver for high speed (100KHz) and low speed (12.5KHz) data rates.
• Pin Compatible with HI-8383J including 13Ω output resistor.
• Low EMI RS-422 Line Driver mode for data rates up to 100 KHz.
• Adjustable Slew rates via external capacitors.
• Inputs TTL and CMOS Compatible.
• Low Quiescent Power of 125mW (typical)
• Programmable output differential range via VREF pin.
• Outputs are not fused.
• Drives full ARINC load of 400Ω and 0.03µF.
• -55°C to +85°C operating temperature range.
• 100% Final testing.

TTL/CMOS to ARINC 429 Line Driver
x HI/LO Speed Control Pin for Hi (100KBS) or Lo (12.5KBS) speed slew rates
x ±9.5V to ±16.5V supplies
x Drives full ARINC load
x Output resistor options: 0, 10 or 37.5 Ohms
x Tristate Output options
x 8 lead SOICN package with exposed pad for thermal enhancement (shown actual size)
x The DEI1070A family is an improved version of the popular DEI1070 family
x Pin for pin replacements with the HI8585 and HI8586

· TTL/CMOS to ARINC 429 Line Driver
· HI/LO Speed Control Pin for Hi (100KBS) or Lo (12.5KBS) speed slew rates
· ±9.5V to ±16.5V supplies
· Drives full ARINC load
· Output resistor options: 0, 10 or 37.5 Ohms
· Tristate Output feature
· Thermally enhanced 5 x 5 mm MLP package
· The DEI1170A family is an improved version of the popular DEI1170 family

Dual TTL/CMOS to ARINC 429 Line Driver
x HI/LO Speed Control Pins for Hi (100KBS) or Lo (12.5KBS) speed slew rates
x ±9.5V to ±16.5V supplies
x Drives full ARINC load
x Output resistor options: 0, 10 or 37.5 Ohms
x Tristate Output feature
x Thermally enhanced 5 x 7 mm MLP package
x The DEI1270A family is an improved version of the popular DEI1270 family

• Adjustable rise and fall times
• Low supply current
• Capable of driving 30 nF || 400Ω
• Digitally selectable 12.5 or 100 kbit/sec data rate
• Adjustable output voltages swing
• Output over-voltage protected
• Short circuit tolerant
• TTL and CMOS compatible inputs
• MIL-STD-883B burn-in screening available
• Package Options:16L SB DIP, 16L CERDIP, 28L CLCC
• Direct replacement for Fairchild/Raytheon RM3182A

TTL/CMOS TO ARINC 429 Line Driver.
• Rate control input set Hi (100KBS) or Lo (12.5KBS) speed slew rates.
• Operates from ±5V power supply.
• Drives full ARINC load.
• Output resistor options: 7.5, 27.5 or 37.5 Ohms.
• Packages:
o 8L SOIC Exposed Pad (single driver)
o 38L MLPQ (QFN) (dual driver)

Operates from single +3.3V power supply.
x Both +5V and -5V are generated on-chip.
x TTL/CMOS TO ARINC 429 Line Drivers.
x 5V/3.3V logic level compatible inputs with 4KV HBM ESD protection
x Rate control input set Hi (100KBS) or Lo (12.5KBS) speed slew rates.
x Drives full ARINC load.
x Output resistors: 5 Ohms or 37.5 Ohms.
x Operating temperature: industrial (-55 to +85°C) or extended (-55 to +125°C)
x Packages (RoHS):
o 16L SOICN
o 16L 4x4mm QFN
