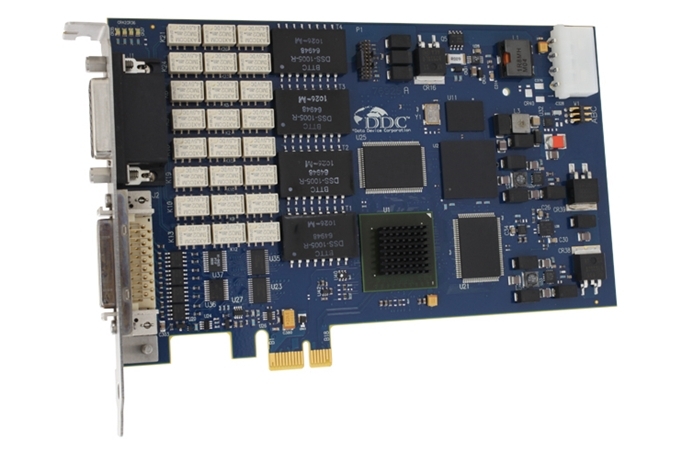

DDC's MIL-STD-1553 PCI-Express Card is designed to interface with PCIe slots in standard desktop computers. The combination of 1553 with digital and avionics Discrete I/Os offers flexibility that makes the PCI Express Card ideal for most test applications. DDC's common test/embedded software API increases productivity, allowing your test and embedded designs to be generated from a common source.

BENEFITS

• Save Time and Reduce Costs:
  • Common Software API for Test/Embedded Boards and Components
  • Program in Minutes with Automated Source Code Generation
  • Test and Simulation Toolkit for Advanced Testing
  • On-Board Programmable Coupling/Termination Reduces Cable Setup Time
• Enhanced Performance
  • On-Board DMA Engine for Low CPU Utilization
  • Bridgeless PCI-E Design Reduces Access Time
  • MSI Interrupts Reduce Interrupt Latency
  • (x1) PCIe = Flexibility

APPLICATIONS

• New Product Development
• Simulation
• Systems Integration
• Bus or Network Analysis
• Production Test
• System Troubleshooting
• Data Recording
• Automatic Test Applications (ATP)

FEATURES:

• Up to 4 Dual Redundant MIL-STD-1553 Channels
  • 2 MB RAM per Channel
  • Multi-Function: BC + Multi-RT + Monitor
  • Single-Function: BC/Monitor or Multi-RT/Monitor
• Test and Simulation Toolkit (BU-67206K series only)
  • Intermessage Gap & RT Response Time as low as 3.5 µs
  • 1553 Bus Reconstruction from Stored Monitor File
  • Digital/Avionic I/O Trigger Capability
  • Real Time Intermessage Event/Data Modification
  • Error Injection
  • Variable Voltage Capability
• 8 Digital and 8 Avionics-Level Discrete I/O
• Software Configuration of Bus Coupling and Termination
• IRIG-B Time Code & External Clock Input/Output
• 48-bit / 100ns Time Stamp
• IRIG-106 Chapter 10 Monitor
• AceXtreme® Next generation 1553 Core
• RoHS Compliant
• Graphical Avionics Bus Analysis & Simulation Software Available
  • BusTrACEr MIL-STD-1553 Graphical Monitor/Generator
  • dataSIMS Real-Time Avionics Bus Analysis & Simulation
  • 1553 LabVIEW® and LabVIEW® Real-Time Package
