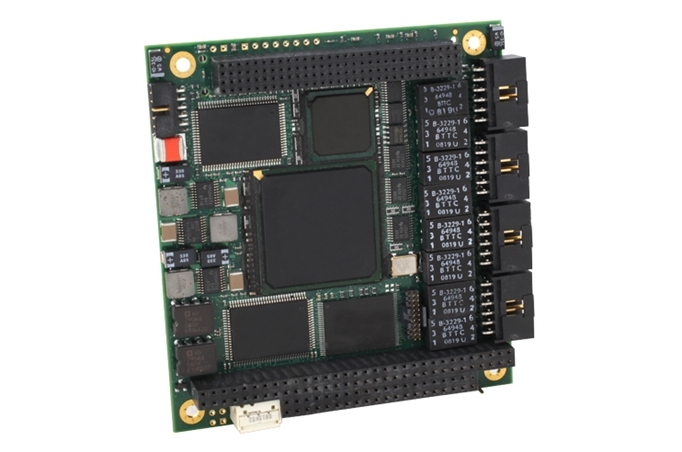

The BU-67104/5C series contains up to four dual redundant MIL-STD-1553 channels and is a perfect fit for military aerospace applications.

Each 1553 channel can emulate a Bus Controller (BC), multiple Remote Terminals (RTs), a Bus Monitor (MT), BC/MT, or Multi-RT/MT modes independently per 1553 channel.

The card includes the AceXtreme® MIL-STD-1553 C Software Development Kit (SDK) and drivers to support all modes of operation for Linux, VxWorks and Windows 2000/XP/Vista/7/8/10, including source code samples and detailed documentation. A common SDK exists across all operating systems for all cards allowing the programmer portability across different platforms. The BusTrACEr Graphical User Interface is optionally available and has point and click application source code generation capability to reduce risk and shorten development cycles.

BENEFITS

• Rugged Design for Harsh Environments
• Proven & Reliable Technology
• Unique I/O Mix & High Channel Count Reduces:
  • Space, Power, Weight, Cost
• C Application Code Generation GUI Shortens Development Cycle and Reduces Risk
• IRIG-106 Chapter 10 On Board Formatting
• User Selectable BC Disable/Tx Inhibit per 1553 channel
• On-Board DMA Engine for Low CPU/PCI Utilization

APPLICATIONS

• Digital Flight Data Recorders
• Telemetry/Instrumentation Recorders
• Mission Computers
• Small Avionics Displays
• Line Replaceable Units (LRUs)
• Radar Systems/Situational Awareness
• Munitions
• Ground Vehicles
• Avionics Labs

FEATURES

• Up to (4) Dual Redundant MIL-STD-1553 Channels
  • BC/Monitor or Multi-RT/Monitor per 1553 Channel
  • Supports MIL-STD-1760
  • Transformer and/or direct coupled
• Up to (5) Digital Discrete I/O
• IRIG-B Time Code Input
• 48-bit/100ns Time Stamp
• +5V only operation
• Included Software:
  • High-Level C SDK and Drivers for Linux®, VxWorks®, and Windows® 2000/XP/Vista/7/8/10
  • Contact Factory for Other Operating Systems
  • Common Test/Embedded API
• Graphical Avionics Bus Analysis & Simulation Software Available
  • BusTrACEr MIL-STD-1553 Graphical Monitor Generator
  • dataSIMS Real-Time Avionics Bus Analysis & Simulation
  • 1553 LabVIEW® and LabVIEW® Real-Time Package
• AceXteme® Next generation 1553 Core
