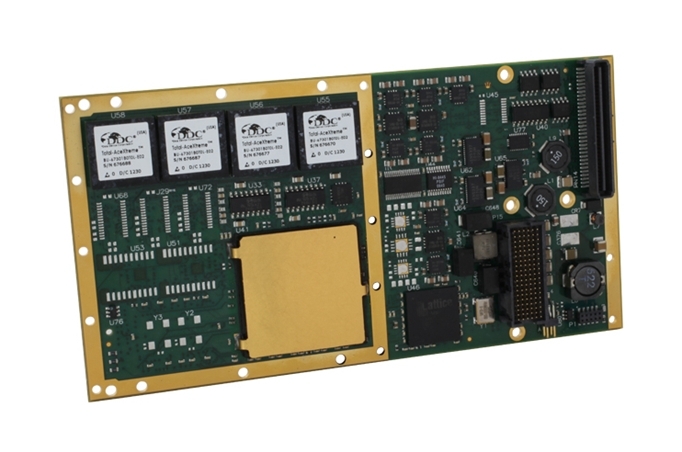

BU-67118 Multi-Channel Multi-Protocol Avionics XMC and PMC Cards
BU-67118Z

DDC's Multi-Channel Multi-Protocol PMC and XMC cards utilize the world's most advanced MIL-STD-1553 technology, Total-AceXtreme®, to deliver ultra low power dissipation, high MTBF, and high performance for rugged environments. The high channel count, unique I/O mix, and high performance can save space, power, weight, and cost.

Benefits:

  • High Channel Mix Saves Space, Weight, Power & Cost (SWaP-C)
    • One Card, Many I/O MIL-STD-1553, ARINC 429, RS-232/422/485 Serial I/O, ARINC 825 (CANbus 2.0), Discrete I/O, IRIG B
  • High Performance, Rugged Design Ideal for Harsh Environments
  • On-Board DMA Engine for Low CPU Utilization
  • IRIG-106 Chapter 10, Tx Inhibit, and ARINC 717 Ideal for Flight Data Recorders

Applications:

  • Mission Computers
  • Displays and LRUs
  • Digital Data Recorders
  • Radar Systems Situational Awareness
  • Commercial Aerospace
  • Flyable Avionics/UAVs
  • Data Loading
  • Data Monitoring
  • Ground Vehicles



FEATURES

  • High Performance PCI-Express Interface XMC
  • Low Power Dissipation
  • Comprehensive Built-In-Self-Tests
  • On Board Thermal Monitoring
  • 4KByte Memory Boundaries for Safety Critical Operating Systems
  • Up to 4 Dual Redundant MIL-STD-1553 Channels
    • Supports MIL-STD-1553A/B and MIL-STD-1760
    • BC Disable for RT Only Applications
    • Tx Inhibit for MT Only Applications
    • IRIG-106 Chapter 10 MIL-STD-1553 MT
  • Up to 20 Programmable Tx/Rx ARINC 429 Channels
    • Supports ARINC 575 & Many Other ARINC Protocols
    • Full Line Rate on All Channels Simultaneously
    • Tx Inhibit for ARINC 429 Rx Only Applications
    • Programmable ARINC 429 Speed
  • Up to 2 Programmable Tx/Rx ARINC 717 Channels
  • Up to 2 ARINC 825 (CANbus 2.0) Channels
    • CANbus Off-load with Processor On Board
  • Up to 8 Programmable RS-232/422/485 Channels
    • Asynchronous Communication on All Channels
    • Synchronous Communication on up to 2 Channels
  • Up to 10 Avionics/Digital Discrete I/O
  • 48-bit/100ns Time Stamp
  • IRIG-B Input
  • (4) 1553/1760
  • (20) 429 Rx/Tx Prog
  • (2) 717 Rx/Tx Prog
  • (8) Serial I/O
  • (2) CANbus 2.0, but is listed as N/A
