DEI1604-MES-G
DEI1604-MES-G
DEI-1604-MES-G
- Bidirectional surge protection
- Protection for Airbus A350 XWB Aircraft Lightning Induced Transients (Also as part of DO160E, Sect 22E)
- Waveform 5A: Pin Injection, 1500V/15A, 500V/500A, 300V/300A, 200V/200A and 100V/100A
- Waveform 3: Pin Injection, 100V/4A, 250V/10A, 600V/24A, 1500V/60A 1MHZ
- Waveform 2: Pin Injection, 100V/4A, 250V/10A, 750V/50A and 1600V/107A
- Low overall resistance: 1.7W
- Operating currents: ±0.45A
- Limits surge current
- 115VAC Fuse for fail safe protection

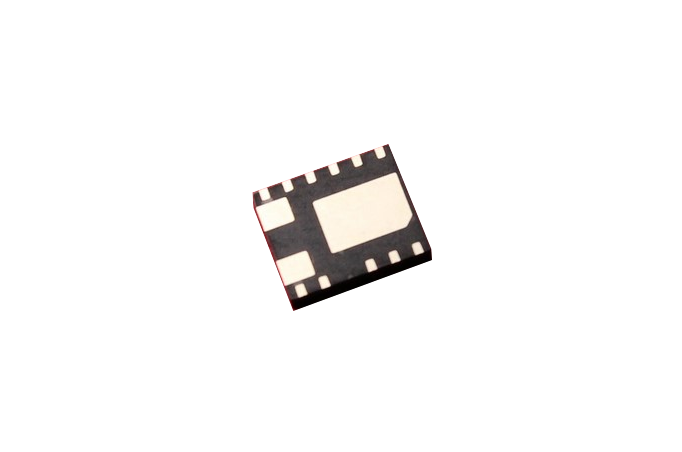

- Package: 12L DFN 6x7.7
