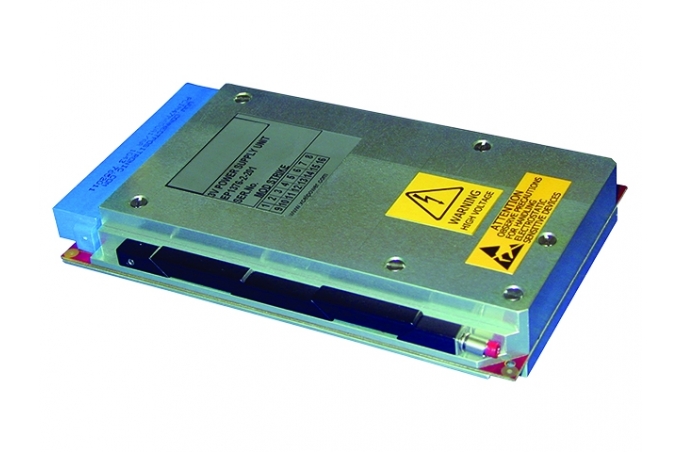

3V Series DC/DC Converter
3V Series DC/DC Converter
3V Series DC/DC Converter
- Input Voltage 28 V Nominal, 22V to 40V continuous
18V at a maximum of 200W - EMC Def Stan 59-411 Input Conducted emissions to Land Class D. MIL-STD-461E/F CE102, CS101, CS114, CS115, CS116 (when fitted with external bulkhead filter)
- Supply Variations I.A.W. ISO 7637-2, Def Stan 61-5 Part 6 issues 5 and 6, or Mil Std 1275D (Battery and generator conditions only)
- No. of Outputs 1 to 4 (outputs 1 and 2 may be paralleled for increased current)
- Input Output
28V Nominal 1 2 3 4
3.3V@20A 5V@20A 12V@6A -12V@1A
3.3V@20A 3.3V@20A 15V@5A -15V@2A
5V@20A 5.0V@20A 12V@2A -12V@2A
3.3V@10A 5V@20A 12V@7A -12V@3A
3.3V@10A 5V@20A 28V@3A -12V@3A - Output Voltage 3 to 30Vdc (set at manufacture)
- Maximum Current Outputs 1 and 2, 20 Amps/output. Outputs 3 and 4, 10 Amps/output
- Isolation characteristics Min Typ Max Units
Isolation (input to output) 500 Vdc
Isolation (output to case) 50 Vdc
Isolation (input to case) 500 Vdc
Insulation Resistance 10 MOhm - Operating Temperature (Case) -40 to +85 ˚C
- Storage Temperature (Ambient) -55 to +90 ˚C
