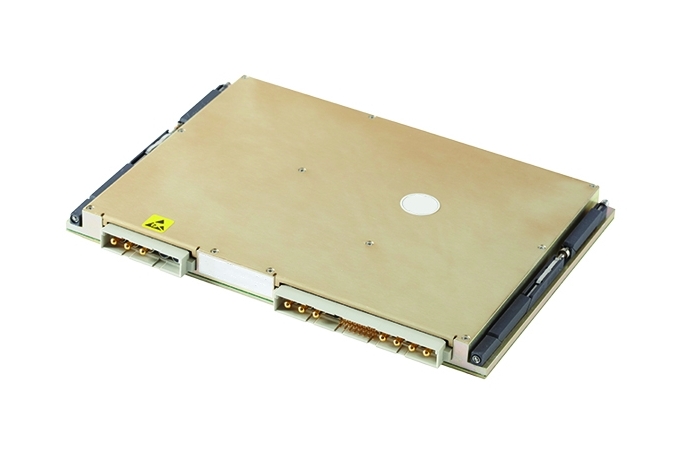

VM-10822 VME Power Supply Single Slot 250W [AC-DC]

Model No.: VM-10822

VM-10822

Input Voltage 85 – 135 Vrms AC, Single Phase 320 – 480Hz
17.8mm (0.7”) profile
ACFAIL*, SYRESET* as per ANSI /VITA 1-1994. Recommended pull up to +5V via a 5Kohm resistance.
250W, 5V/30A, 3.3V/10A, ±12V/2.5A, 5V STANDBY/0.1A
Isolation: Input to Output >50 Mohms+@1500Vrms AC
Input to Chassis >50 Mohms+@1500Vrms AC
Output to Chassis >10 Mohms+@100Vdc
True current sharing: These connections are used to permit paralleling of power supplies, 5V, 3V3 and ±12V only. Connect the
respective share pins with an impedance of < 1ohm. Sharing is ± 10%.
4ms minimum at full load and any input voltage within specified ranges. After 4ms (may be longer dependant on the load) all outputs apart from the 5V standby will shut down. 5V standby continues to provide power for a minimum of 300ms.
The units meet the following requirements of MIL-STD-461D
CE101 (Figure CE101-4), CE102, CS101, CS114 (Curve #3), CS115, CS116 (Air Force)
Full specified performance with the card edge temperature maintained within the range –55ºC to +85ºC
Storage Temperature: -55ºC to +105ºC
Less than 1.2 kilograms
