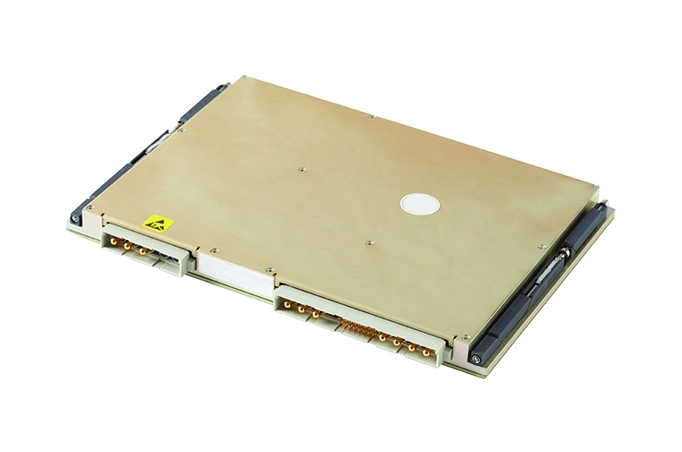

VM-10641 VME Power Supply Single Slot 250W [DC-DC]
VM-10641
  • Input Voltage 18 – 35 Vdc
  • 17.3mm (0.68”) profile
  • ACFAIL*, SYRESET* as per ANSI /VITA 1-1994. Recommended pull up to +5V via a 5Kohm resistance.
  • 250W, 5V/30A, 3.3V/10A, ±12V/2.5A, 5V STANDBY/0.1A
  • Isolation:  Input to Output 50 Mohms+@500Vdc
                           Input to Chassis 50 Mohms+@500Vdc
                          Output to Chassis 10 Mohms+@100Vdc .
  • 4ms minimum at full load and any input voltage within specified ranges. After 4ms (may be longer dependant on the load) all outputs apart from the 5V standby will shut down. 5V standby continues to provide power for a minimum of 300ms.
  • The units meet the following requirements of MIL-STD-461D
    CE101 (Figure CE101-4), CE102, CS101, CS114 (Curve #3), CS115, CS116 (Air Force)
  • Full specified performance with the card edge temperature maintained within the range –55ºC to +85ºC
  • Storage Temperature: -55ºC to +105ºC
