DEI1167 OCTAL GND/OPEN INPUT, PARALLEL OUTPUT INTERFACE IC

Model No.: DEI1167

DEI1167-TES-G/DEI1167-TMS-G

Eight GND/OPEN discrete inputs
Meet electrical requirements for ABD0100 GND/OPEN discrete input.
Hysteresis provides noise immunity.
Internal pull up resistor
Internal isolation diode
Inputs protected from Lightning Induced Transients per DO160D, Section 22, Cat A3 and B3.
3.3V or 5V TTL/CMOS compatible digital IO
8 tri-state outputs
/CS & /OE control inputs
Logic Supply: 3.3V or 5V
Analog Supply: 12V

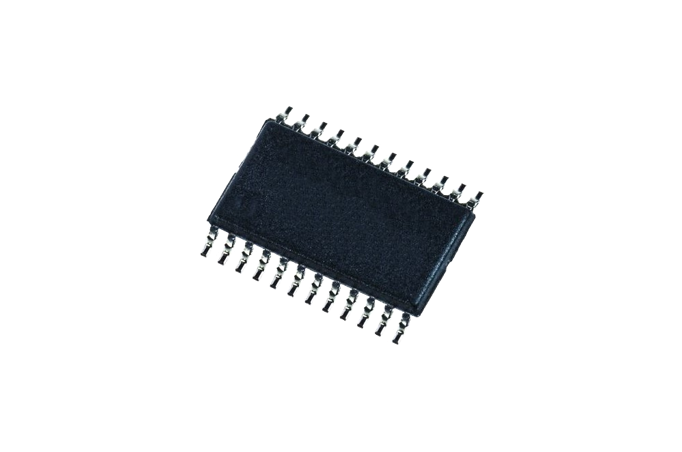

24L TSSOP package
