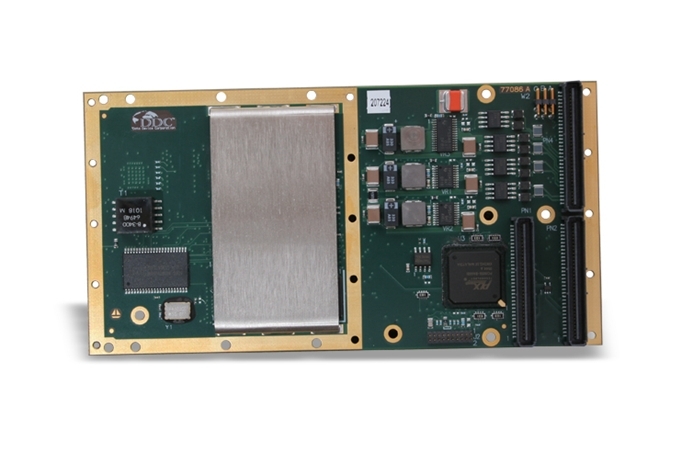

Rugged and reliable, DDCs BU-65580M embedded PMC card is engineered for rugged environments and can be used in conduction cooled or air cooled systems. The combination of one dual redundant MIL-STD-1553 channel and one channel of Enhanced Bit Rate-1553 (EBR-1553) with a 4 port hub on a single card saves space, power, weight, and cost€”making this an ideal solution for systems with limited space.

BENEFITS

• Complete Hardware and Software Solution
• Rugged PMC Design for Harsh Environments
• Suitable for both Embedded and Lab Applications
• Field Proven Reliable Technology Based on Over 200 Million Hours of In-Flight Performance
• Unique I/O Mix Reduces Space, Power, Weight, and Cost
• Save Time and Reduce Cost
  • Common Test/Embedded API for Rapid Prototyping with Less Programming Time
  • Program in Minutes with BusTrACEr Automated Application C Code Generation

APPLICATIONS

• Weapons Interfaces and Programmers
• Stores Management Systems
• Launchers
• Test Equipment
• Simulators
• Systems Integration Labs
• Ground Maintenance

FEATURES

• Dual Redundant MIL-STD-1553 Channel
  • BC, RT, MT, or RT/MT Operation
  • Supports MIL-STD-1553A/B and MIL-STD-1760
  • Transformer Coupled
• Four Port EBR-1553/MMSI Hub
• 8 Digital Discrete I/O
• High-Level C Software Development Kits for Windows XP/Vista/7/8/10 Embedded Standard and Linux
• Graphical Avionics Bus Analysis and Simulation Software Available
