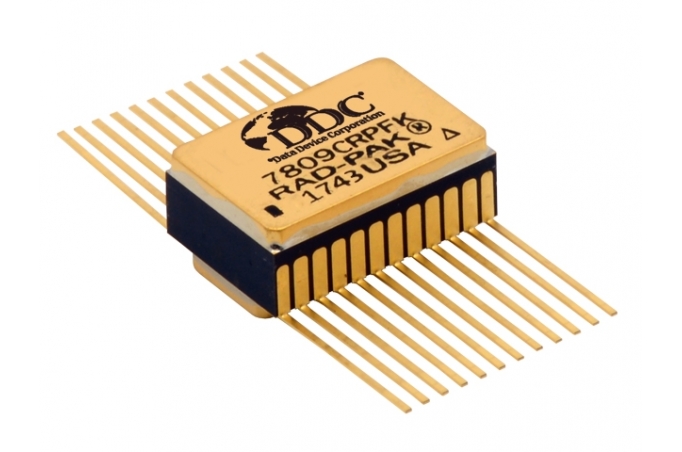

7809C 16-bit, 100 KSPS A/D Converter [A-D]
7809C
  • RAD-PAK radiation-hardened against natural space radiation
  • Total dose hardness:
    • > 100 krad (Si), depending upon space mission
  • SEL TH > 84 MEV
  • Package: 24 pin RAD-PAK flat package
  • 100 kHz min sampling rate
  • ±10 V and 0 V to 5 V input range
  • DNL: 15-bits “No Missing Codes”
  • 83 dB min SINAD with 20 kHz input
  • +5 V supply operation
  • Utilizes internal or external reference
  • Serial output
  • Power dissipation: 100 mW max
