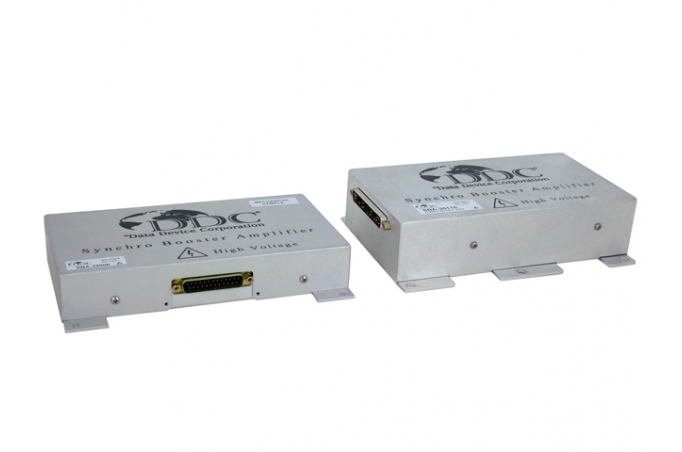

SBA-35xxx High Power Booster Amplifier
SBA-35xxx
SBA-3500x
- Save on Maintenance Costs, No Calibration Required
- 90V, 60 or 400Hz Synchro Outputs
- 25VA Output Drive
- Amplifies 90V Synchro, 6.81V, 5V, and 2V Resolver Inputs
- Kick Circuit Frees Torque Receiver Rotor to Prevent Hang-ups
- Very High Efficiency
- Deriving Power from Reference Reduces Heat Dissipation by 50%
- Protected Against Short Circuits, Over-Loading, Load Transients, and Over-Temperature
- Shock and Vibration Testing Performed
- Built-In Test Monitor Output for Fault Indication
- Power On/Off Can Be Externally Controlled
- No Calibration Required
- Drop-In Replacement to the SBA-25001/2/3/4 Series Synchro Boosters
- No External +5V Supply Needed
- -40°C to +85°C Operating Temperature
- Compact Size
- SBA-350xx - 7.4 in. x 5.06 in. x 1.32 in. (188 mm x 129 mm x 33.5 mm)
- SBA-351xx - 7.4 in. x 5.09 in. x 1.8 in. (188 mm x 129 mm x 46 mm)
- Reduced Weight
- SBA-350xx 1.2 lbs (0.54 kg) max
- SBA-351xx 1.4 lbs (0.635 kg) max
