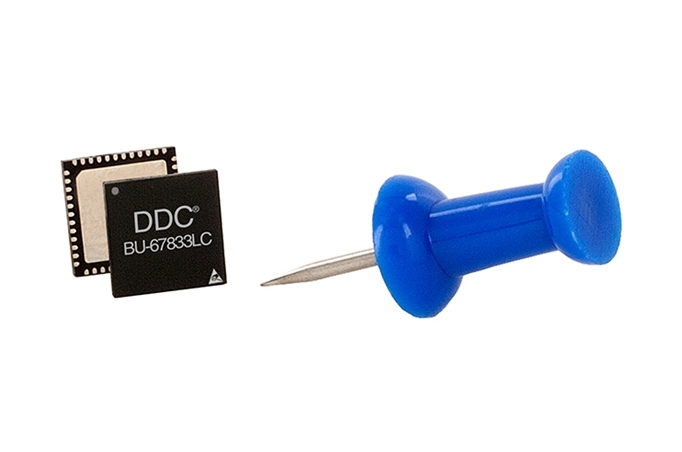

Nano-ACE MIL-STD-1553 BC/RT/MT
BU-67833LC BU-67743LC BU-67753LC
NanoACE
Nano-ACE components are the world’s smallest and lowest power complete, MIL-STD-1553 RT/MT and RT/BC/MT enabling the development of more compact and higher density boards.
Benefits
- Ultra Small Size Saves Space and Enables More Compact and Higher Density Boards
- Replaces 2 Transceivers, MIL-STD-1553 Protocol Core, and Memory
- RT Validated
- Tx Inhibit Ball for MT Only Applications
- Software and Register Compatible with ACE, Mini-ACE®, Enhanced Mini-ACE®, Micro-ACE®, and Mini-ACE® Mark3 Series Remote Terminals
Development Kit for Easy Integration
- Evaluation Board with Cable
- IBIS Model and Schematic Symbols
- Reference Design Schematic
- CAD Drawing Footprints
- MTBF Report, and RT Validation Report
Applications
- Displays
- Simple Systems
- Radios/Modems
- Stores Management
- Nano-ACE MIL-STD-1553 BC/RT/MT Product Brief Download
