Features

• Fully Integrated 3.3 or 5.0 Volt, 1553 A/B Notice 2 Terminal
• World’s First all 3.3 Volt Terminal
• Transceiver Power-Down Options
• World’s Smallest CQFP MIL-STD-1553 Device
• 80-pin Ceramic Flat/Gull Wing Package or 324-Ball BGA Package
• Enhanced Mini-ACE Architecture
• Multiple Configurations:
- RT-only, 4K RAM
- BC/RT/Monitor, 4K RAM
- BC/RT/Monitor, 64K RAM
• Supports 1553A/B Notice 2, McAir, STANAG 3838 Protocols
• MIL-STD-1553, McAir, and MIL-STD-1760 Transceiver Options
• Highly Flexible Host Side Interface
• Compatible With Mini-ACE and ACE Generations
• Highly Autonomous BC with Built-In Message Sequence Controller
• Choice of Single, Double, and Circular RT Buffering Options
• Selective Message Monitor
• Comprehensive Built-In Self-Test
• Choice Of 10, 12, 16, or 20 MHz Clock Inputs
• Software Libraries and Drivers
available for Windows® 9x/2000/XP, Windows NT®, VxWorks® and Linux
• Available with Full Military Temperature Range and Screening

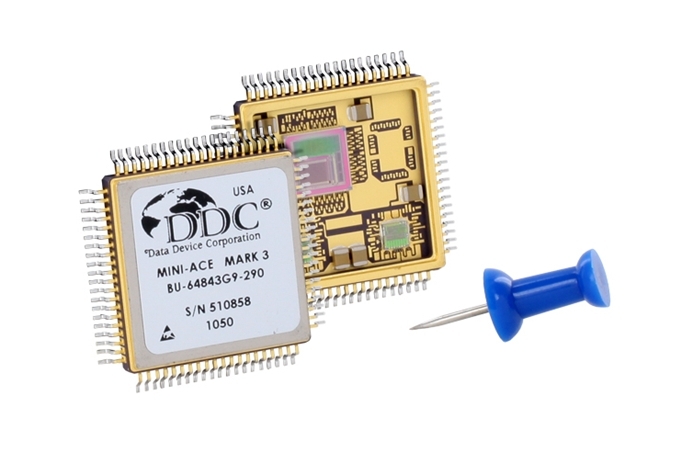

Mini-ACE Mark3... the worlds first 3.3V MIL-STD-1553 terminal with transceivers eliminates the cost and space required for a 5V power supply, while providing the smallest ceramaic 1553 terminal with a compact 0.88 in footprint that is ideal for use where PC board space is at a premium. The Mini-ACE Mark3 terminals provide interfaces between a host processor or PCI interface and 1553 bus.

Benefits

• Proven & Reliable Technology
• Small Footprint Reduces:
  • Space, Power, Weight, Cost
• Software Compatible with ACE, Mini-ACE®, and Enhanced Mini-ACE® Series
• Ceramic Package for Extreme Conditions

Applications

• Mission Computers
• Data Recorders
• LRU's
• Displays
• Ground Vehicles
• Commercial Aerospace
