Civil Aerospace-Card Solutions

Model No.:VM-10822

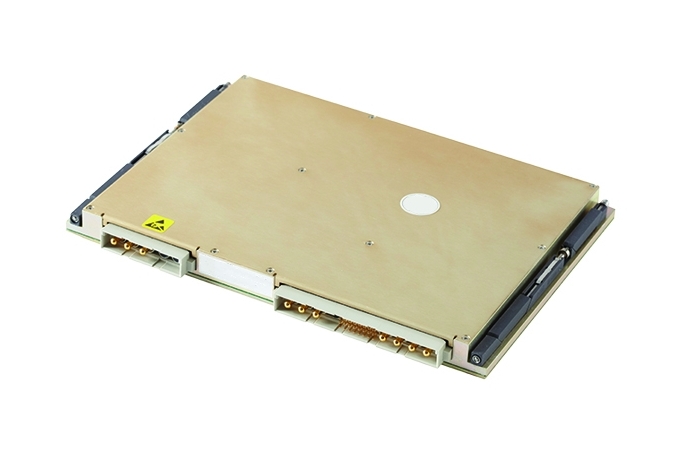

VM-10822 VME Power Supply Single Slot 250W [AC-DC]
Input Voltage 85 – 135 V AC, Single Phase 320 – 480Hz
17.8mm (0.7”) profile
VME compatible AC FAIL and SYSRESET lines
250W, 5V/30A, 3.3V/10A, ±12V/2.5A, 5V STANDBY/0.1A
True current sharing
4ms hold-up capability
EMI to MIL-STD-461D
-55°C to +85°C operation
Model No.:VM-11918
VM-11918 VME Power Supply Single Slot 250W [AC-DC]
Input Voltage 85 – 135 V AC, Single Phase 320 – 480Hz
VME compatible AC FAIL and SYSRESET lines
250W, 5V/30A, 3.3V/10A, ±12V/2.5A, 5V STANDBY/0.1A
-55°C to +85°C operation
Model No.:VM-11995
VM-11995 VME Power Supply Single Slot 250W [AC-DC]
Input Voltage 85 – 135 V AC, Single Phase 320 – 480Hz
17.8mm (0.7”) profile, & 1 ATR box compatible.
VME compatible AC FAIL* and SYSRESET* lines
250W, 5V/35A, 3.3V/1.0A, ±12V/2.5A, 5V STANDBY/0.1A
4ms hold-up capability
EMI to MIL-STD-461D
-55°C to +85°C operation
Conduction or forced air cooled
Model No.:VM-11966
VM-11966 VME Power Supply Single Slot 175W [DC-DC]
Input Voltage 18 – 35V DC
17.3mm (0.68”) profile,¾ & 1 ATR box compatible
VME compatible AC FAIL* and SYSRESET* lines
175W, 3.3V/35A, ±12V/2.5A, 5V STANDBY/0.1A
4ms hold-up capability
EMI to MIL-STD-461D
-55°C to +85°C operation
Model No.:VM-10641
VM-10641 VME Power Supply Single Slot 250W [DC-DC]
Input Voltage 18 – 35V DC
17.8mm (0.7”) profile, ¾ & 1 ATR box compatible.
VME compatible AC FAIL* and SYSRESET* lines
250W, 5V/30A, 3.3V/10A, ±12V/2.5A, 5V STANDBY/0.1A
4ms hold-up capability
EMI to MIL-STD-461D
-55°C to +85°C operation
Model No.:VM-11919
VM-11919 VME Power Supply Single Slot 250W [DC-DC]
Input Voltage 18 – 35V DC
17.8mm (0.7”) profile, ¾ & 1 ATR box compatible
VME compatible AC FAIL* and SYSRESET* lines
250W, 5V/30A, 3.3V/10A, 12V/2.5A, 5V STANDBY/0.1A
4ms hold-up capability
EMI to MIL-STD-461D
-55°C to +85°C operation
Model No.:VM-11965
VM-11965 VME Power Supply Single Slot 250W [DC-DC]
Input Voltage 18 – 35V DC
17.3mm (0.68”) profile, ¾ & 1 ATR box compatible
VME compatible AC FAIL* and SYSRESET* lines
250W, 5V/50A, 5V STANDBY/0.1A
4ms hold-up capability
EMI to MIL-STD-461D
-55°C to +85°C operation
Model No.:VM-12101
VM-12101 VME Power Supply Single Slot 250W [DC-DC]
Input Voltage 18 – 35V DC Steady State
17.8mm (0.7”) profile, & 1 ATR box compatible.
VME compatible AC FAIL* and SYSRESET* lines
250W, 5V/30A, 3.3V/15A, ±12V/2.0A, 5V STANDBY/0.2A
True current sharing
4ms hold-up capability
EMI to MIL-STD-461D
-55°C to +85°C operation
Model No.:VM-12828
VM-12828 VME Power Supply Single Slot 250W [DC-DC]
Input Voltage 18V (16V @ 200W) – 35V DC Steady State
17.8mm (0.7”) profile, ¾ & 1 ATR box compatible.
VME compatible AC FAIL* and SYSRESET* lines
250W, 5V/28A, 3.3V/10A, ±15V/2.5A, 5V STANDBY/0.1A
True current sharing
4ms (250W), 10ms (160W) hold-up
Additional external holdup capability
EMI to MIL-STD-461D
-55°C to +85°C operation
Model No.:VM-11915
VM-11915 VME Power Supply Single Slot 300W [DC-DC]
Input Voltage 22V – 35V DC (300W) 18-22V (250W)
17.8mm (0.7”) profile, ¾ & 1 ATR box compatible.
VME compatible AC FAIL* and SYSRESET* lines
300W, 5V/40A, 3.3V/30A, ±12V/0.5A, 5V STANDBY/0.1A
True current sharing (5V, 3.3V, ±12V)
4ms hold-up capability (250W)
EMI to MIL-STD-461D
-55°C to +85°C operation
