Senses six Open/Ground Inputs
· Inputs are lightning protected to DO-160 Level 3
· TTL/CMOS-Compatible Tri-State Outputs
· Package / Temperature Options:
· 16 lead .150” SOIC, -55°C /+85°C

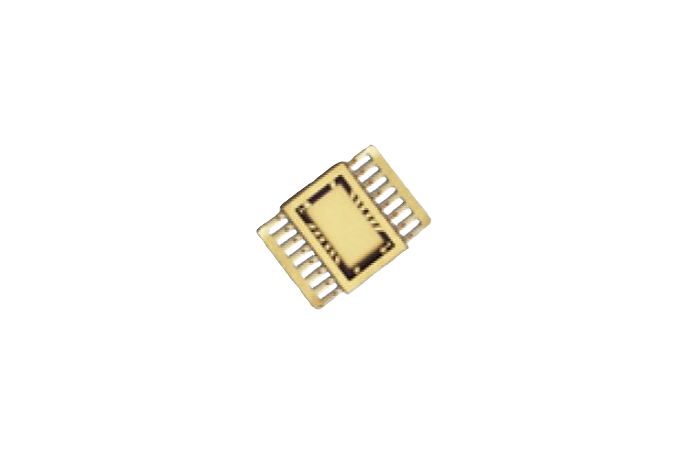

· 16 lead Ceramic 300mil SOP, -55°C /+125°C

· Small footprint (16L SOIC NB)
· Senses six 28V/Open discrete logic signals
· Inputs are Lightning Protected to DO-160D Level 3
· TTL/CMOS-Compatible Tri-state Outputs
· Package / Temperature Options:
· 16L 150mil SOIC, -55°C/+85°C
· 16L Ceramic 300mil SOP, -55°C/+125°C

Eight GND/OPEN discrete inputs
o Meet electrical requirements for ABD0100F GND/OPEN discrete input.
o Hysteresis provides noise immunity
o Internal pull up resistor with 1mA source current to prevent dry relay contacts.
o Internal isolation diode
o Inputs protected from Lightning Induced Transients per DO160D, Section 22, Cat A3 and B3.
· 3-wire serial interface (/CS, CLK, DO)
o Direct interface to Serial Peripheral Interface (SPI) port.
o TTL/CMOS compatible inputs and Tristate output
o 10MHz Data Rate
o Serial input to expand Shift Register
· Logic Supply Voltage (VCC): 3.3V or 5V
· Analog Supply Voltage (VDD): 5V to 18V

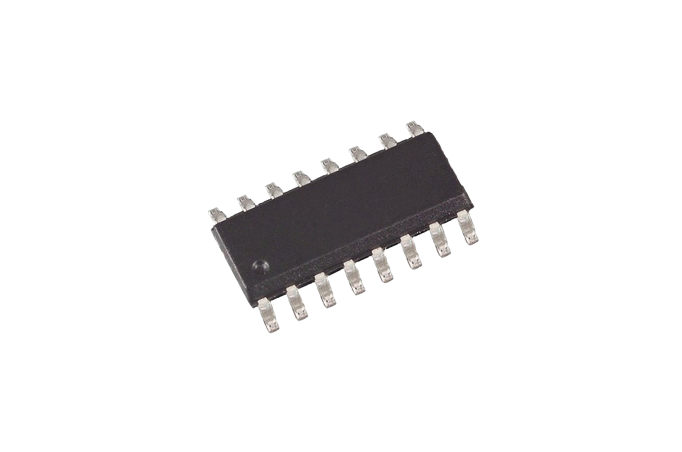

· 16L NB SOIC package

Eight GND/OPEN discrete inputs
o Meets electrical requirements for ARINC 735A GND/OPEN discrete inputs
o Hysteresis provides noise immunity
o Internal pull up resistor with 1mA source current to prevent dry relay contacts.
o Internal isolation diode
o Inputs protected from Lightning Induced Transients per DO160, Section 22, Level 3 pin injection
· 3-wire serial interface (/CS, CLK, DOUT)
o Direct interface to Serial Peripheral Interface (SPI) port.
o TTL/CMOS compatible inputs and Tristate output
o 10 MHZ Data Rate
o Serial input to expand Shift Register
· Logic Supply Voltage (VCC): 3.3 V or 5 V
· Analog Supply Voltage (VDD): 15 V ±10%
· Pin compatible with DEI1066
· 16L NB SOIC package

FEATURES
·Eight GND/OPEN discrete inputsoInternal pull up resistor with 1mA source current to prevent dry relay contactsoInternal isolation diodeoInputs protected from Lightning Induced Transients per DO160, Section 22 Level 3 pin injectionoHysteresis provides noise immunity·3.3 V or 5 V TTL/CMOS compatible digital IOo8 tri-state outputso/CE & /OE control inputs
·VCC Logic Supply:3.3 V or 5 V

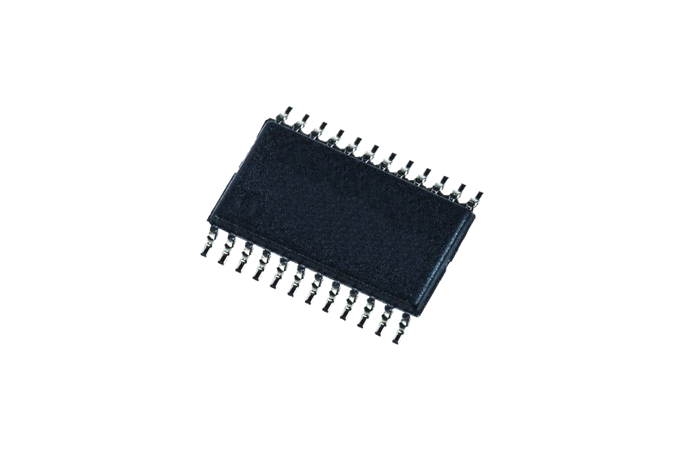

·VDD Analog Supply:5 V to 18 V·24L
TSSOP package

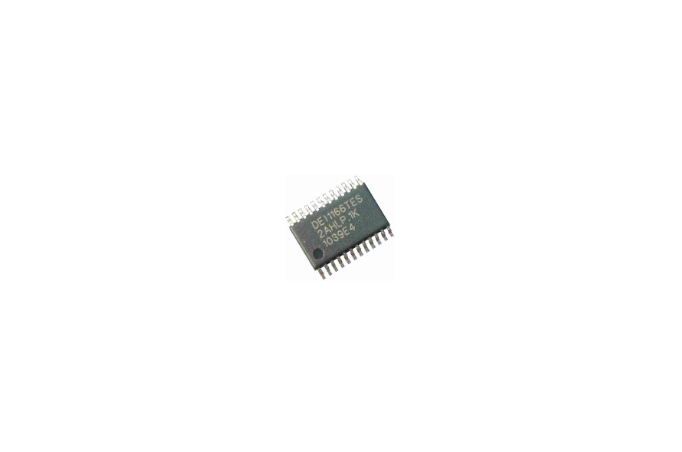

The DEI1167 is an eight-channel parallel-output discrete-to-digital interface BICMOS device. It senses eight Ground/Open discrete signals of the type commonly found in avionic systems. The data is read from the device via a parallel 3-state output.

DEI1184 is an eight-channel discrete-to digital interface IC implemented in an HV DIMOS technology. It senses eight discrete signals of the type commonly found in avionic systems and converts them to serial logic data. Each input can be individually configured as either GND/OPEN or 28V/OPEN format input via a serial data input. The discrete data is read from the device via an eight-bit serial shift register with 3-state output. This serial interface is compatible with the industry standard Serial Peripheral Interface (SPI) bus.

DEI1188 is an eight-channel discrete-to-digital interface IC implemented in an HV DIMOS technology. It senses eight GND/OPEN discrete signals of the type commonly found in avionic systems and converts them to serial logic data. The discrete data is read from the device via an eight-bit serial shift register with 3-state output. This serial interface is compatible with the industry standard Serial Peripheral Interface (SPI) bus.

DEI1198 is an eight-channel parallel discrete-to-digital interface IC implemented in an HV DIMOS technology. It senses eight GND/OPEN discrete signals of the type commonly found in avionic systems and converts them to logic data. The discrete data is read from the device via a parallel tri-state bus.

DEI1282 and DEI1284 are eight-channel discrete-to-digital interface ICs implemented in a High Voltage Dielectric Isolated technology. They sense eight discrete signals of the type commonly found in avionic systems and convert them to serial logic data. Each input can be individually configured as either GND/OPEN or 28V/OPEN format input via a serial data input. The discrete data is read from the device via an eight-bit serial shift register with 3-state output. This serial interface is compatible with the industry standard Serial Peripheral Interface (SPI) bus.
